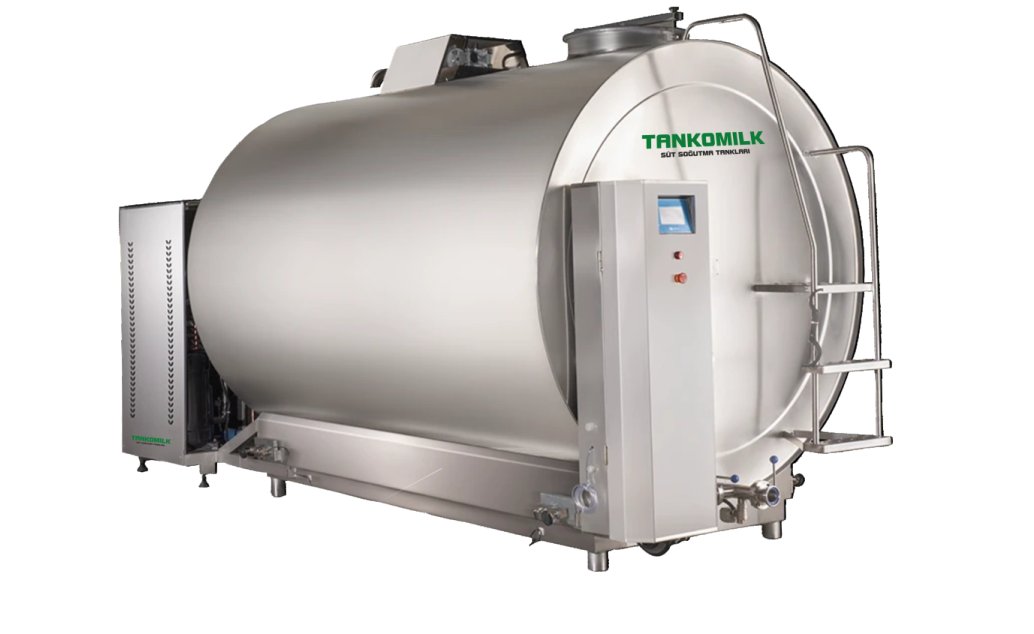

Horizontal Milk Cooling Tank
3000 - 4000 - 5000 - 6000 - 8000 - 10000 LITERS
TECHNICAL SPECIFICATIONS
Material Standard: CrNi 304 Quality Food Grade Stainless Steel
Internal Wall Thickness: 2 mm
External Wall Thickness: 1.5 mm
Cooling Technology: Rollbond evaporator system Cooling Surface Source: Laser Welded 2 mm thick inner wall integration
Welding Quality (General): Laser and argon welding, smooth and hygienic surface quality
Insulation Thickness: 60 mm
Insulation Material: Water-based polyurethane (Environmentally friendly, HCFC-free)
Chassis Structure: Robust monoblock design integrated under the tank
Mixer Power: 1.1 kW
Mixer Speed: 28 rpm (rpm)
Mixer Mechanism: Stainless steel impeller with reducer
COOLING SYSTEM
- Fast cooling without freezing
- R-404A gas
- 35 °C - 4 °C cooling capacity (at 32-38 °C ambient temperature)
OPTIONAL EQUIPMENT
- Digital weighing system (load cell)
- Milk transfer pump (milk transfer pump installation)
ELECTRICAL GROUP
- IP65 protection class panel
- 220V or 380V operation
- Digital thermometer
- Electronic control card and phase protection relay
- Automatic mixing program: 5 minutes work / 10 minutes stop
- With capacity options of 3000-4000-5000-6000-8000-10000 liters and more
